Products



SCREW COMPRESSORS

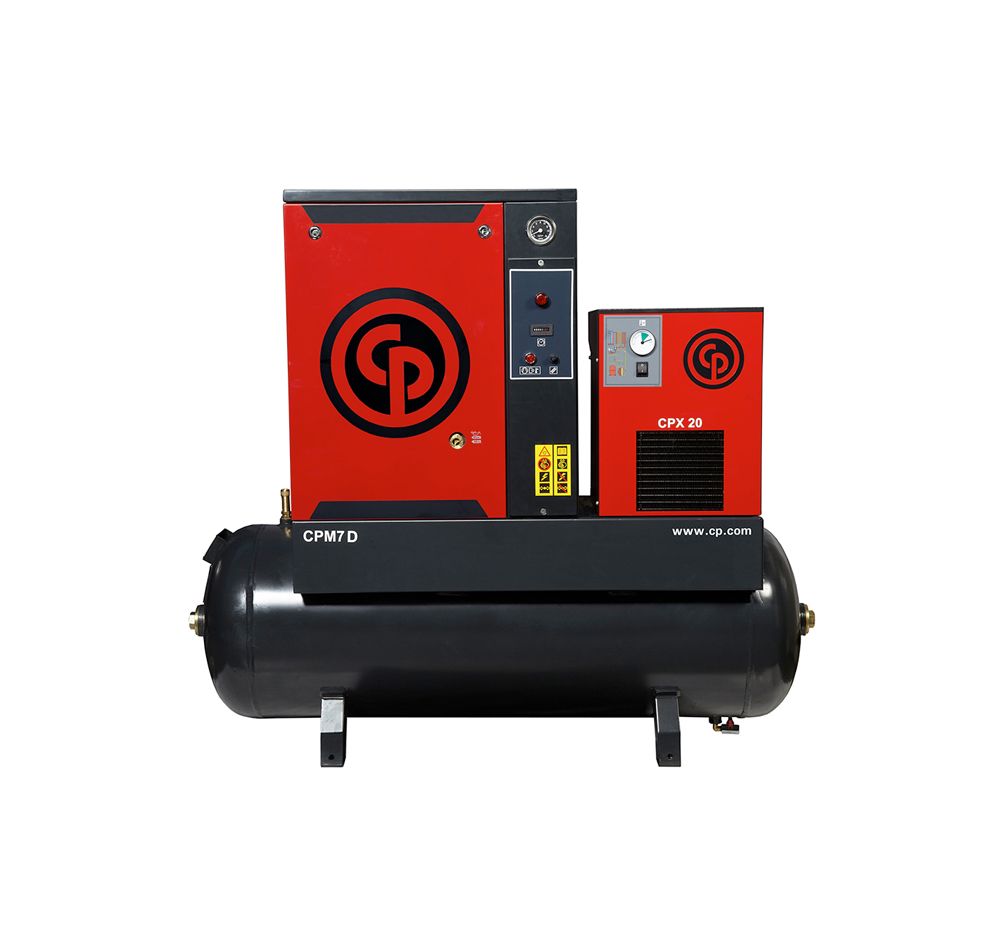

CPM Screw Compressors

Compact Dimensions

Ideal for tire shops, maintenance shops, vehicle body or paint shops and automotive dealerships, the CPM can offer you a complete unit (with dryer and 200L receiver) on just 1m². You can fit it easily to any free space without trouble.

Quiet Operation

Generously sized sound insulation. With rotary screw technology the CPM compressor creates low noise without disturbing the working environment. Thus the CPM compressor can ideally be placed at most of the workplaces without any disturbance.

More output and less energy consumption

When compared to piston compressors, the exceptional efficiency of the CPM and the high output of the package ensure reduced power consumption, maximized output (capacity) and low cost per CFM produced.

  •
  •
  •
  •
  •
  •
  •
  •
  •
Model HP Pressure (BAR G) CFM db(A) End Connection Weight (KG) TM TMD
            TM TMD
1. Unit performance measured as per ISO 1217:2009Ed4.n2. Noise level measured according to ISO2151/Pneurop/CAGI PN8NTC2.n3. All models available with 200L receiver tank.n4. All models available with optional Refrigerated dryers (Suffix D).n5. Maximum working pressure for machines with dryer is 9.75 bar.
CPM 3 3 10 8 61 1/2" 175 209 1495 X 550 X 1285 1440 X 550 X 1285
CPM 4 4 11 175 209
CPM 5 5 16 62 178 209
CPM 7 7.5 21 182 216



CPN Screw Compressors

Small & compact design with less than 1m² footprint and 35% more energy efficient than power sized piston compressor
